Brass Mesh Coil Curtain – a Modern Curtain with Aesthetic Appearance

Copper and brass mesh coil curtain, which is also called copper and brass metal coil curtain or drapery, is made of high-quality aluminum wire, iron wire, copper wire, or other materials. It's cheap to maintain copper and brass mesh coil curtain because you only need to wipe it by a cloth. The new kind of curtain with excellent fireproof property, ventilation, light transmission and nobility is significant for both interior and exterior decorations such as window treatment, architectural drapery, shower curtain, space divider, ceilings. Generally, copper and brass mesh coil curtain is used in exhibition halls, living rooms, restaurants, hotels and bathroom. Here are copper and brass mesh coil curtains respectively.

Note: Customized according to your requirements.

CBMCC-01: Copper mesh coil curtain has pretty good ventilation and light transmission.

CBMCC-02: Brass mesh coil curtain brings ventilation and light transmission to your building.

Copper and brass mesh coil curtain specifications

• Product name: copper and brass mesh coil curtain.
• Material: brass, copper, aluminum alloy, low carbon steel, etc.
• Wire diameter: 0.5–2 mm.
• Aperture diameter: 3–20 mm.
• Diamond height: 3–20 mm.
• Diamond width: 5.5–35 mm.
• Coil outside diameter: 3.75–19.5 mm.
• Coil inside diameter: 4–24 mm.
• Pitch: 4–24 mm.
• Open area: 40% – 85%.
• Weight: 4.2–6 kg/m². (depending on material and size chosen)
• Coil length & mesh panel width: customized.
• Surface treatment: pickling, anodic oxidation and baking varnish.
  • Pickling.
    The theory of pickling is to remove the oxide or inclusions on the surface. The color, going through the pickling process, can keep a long time without rust and fade.
  • Anodic oxidation.
    Anodic oxidation, by organic solvent as medium, uses point discharge to form a protective film on the product surface. Anodic oxidation can enhance anti-corrosion property and durability of the product. By the way, it can be put any color you want.
  • Baking varnish.
    Baking varnish, a general coloring way, sprays lacquer on the surface and then mixes the paint colors. Finally, painting the mixed paint onto the mesh coil curtain. After painting color on the surface, the surface will be baked in high temperature to get a durable color. The colors, through baking varnish, will be bright and beautiful.

CBMCC-03: Brass mesh coil curtain details shows that you can choose the curtain according to your requirements.

Copper and brass mesh coil curtain features

• Aesthetic appearance. Copper and brass mesh coil curtain can create a visual aesthetic effect.
• Anti-mildew and anti-fire properties. Copper and brass mesh coil curtain is suitable for two extremely harsh environment: humid environment and flammable environment.
• Low maintenance: It's cheap to maintain copper and brass mesh coil curtain because you only need to wipe it by a cloth.
• Environmental friendly material. 100% recyclable.
• Rust resistance and high strength. Copper and brass mesh coil curtain can adopt three surface treatments: pickling, anodic oxidation or baking varnish. They can bring high anti-corrosion property to it. In addition, good toughness and abrasion resistance make it strong.
• Easy installation. Copper and brass mesh coil curtain has lightweight with flexible structure.
• Ventilation and light transmission. Copper and brass mesh coil curtain can keep fresh air and bring great lighting.
• Versatility. Copper and brass coil mesh can be used in different applications.

Copper and brass mesh coil curtain package

First, copper and brass coil curtain is packaged into rolls by water-proof paper or bubble plastic film, and then put them in cartons, wooden cases or pallets according to your requirements.

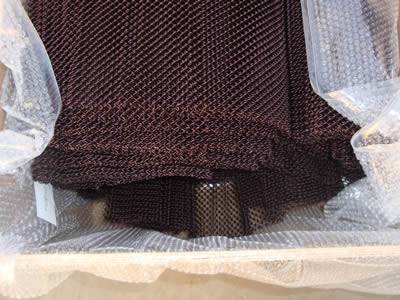

CBMCC-04: Bubble plastic film package can protect copper mesh coil curtain from rain or water.

CBMCC-05: Wooden boxes package can protect copper mesh coil curtain from internal vibration and external impact.

Copper and brass mesh coil curtain installation

We have three different installation ways: U track, H track installation and stainless steel curtain rod installation.

• H track can be applied as rippled strips to appear the effect of fluency. Because of high flexibility, it's easy to be bent into any shape or angle in order to conform to installation position condition which you need to install with copper or brass mesh coil curtain.
• U track is a straight structure. It's difficult to bend because of exceptional structural design and high-quality control. U track can provide a good visual hang feeling for your copper and brass mesh coil curtain. If you need and desire an aesthetic appearance, U track will be a good choice.
• Stainless steel curtain rod is is easy for installing with copper and brass mesh coil curtain on it. You can use shorter time to compete installation.

H track, U track are made from aluminum materials. Stainless steel curtain rod material conforms to AISI 316 materials group. These three installation ways can provide ideal solutions with excellent stability, strength and flexibility for you. You can custom according to your requirements.

CBMCC-06: Aluminum U track installation details.

CBMCC-07: U track installation can provide a good hang feeling for brass mesh coil curtain.

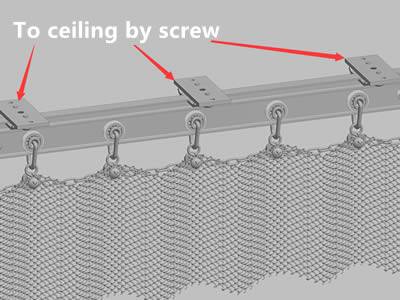

CBMCC-08: Aluminum H track installation details.

CBMCC-09: H track installation can be bent into any shape or angle in order to conform to installation position condition.

CBMCC-10: Stainless steel curtain rod installation is easy for installing on it.

Copper and brass mesh coil curtain applications

Copper and brass mesh coil curtain is ideal decorations for hotels, exhibition halls, widows, office buildings, balconies, stairs and supermarkets center and so on. Generally , it's significant for the following applications in these places: interior partition, door curtain, shower curtain, sun shades, decorative facade, room divider, day-lighting screening, ventilation grilles, wall decoration.

CBMCC-11: Brass mesh coil curtain as a office divider can separate different functional areas.

CBMCC-12: Brass mesh coil curtain as a glass wall decoration can make the luxury building more noble, refine and elegant.

CBMCC-13: Brass mesh coil curtain as space divider in restaurant

CBMCC-14: Brass mesh coil curtain as stair security curtain
